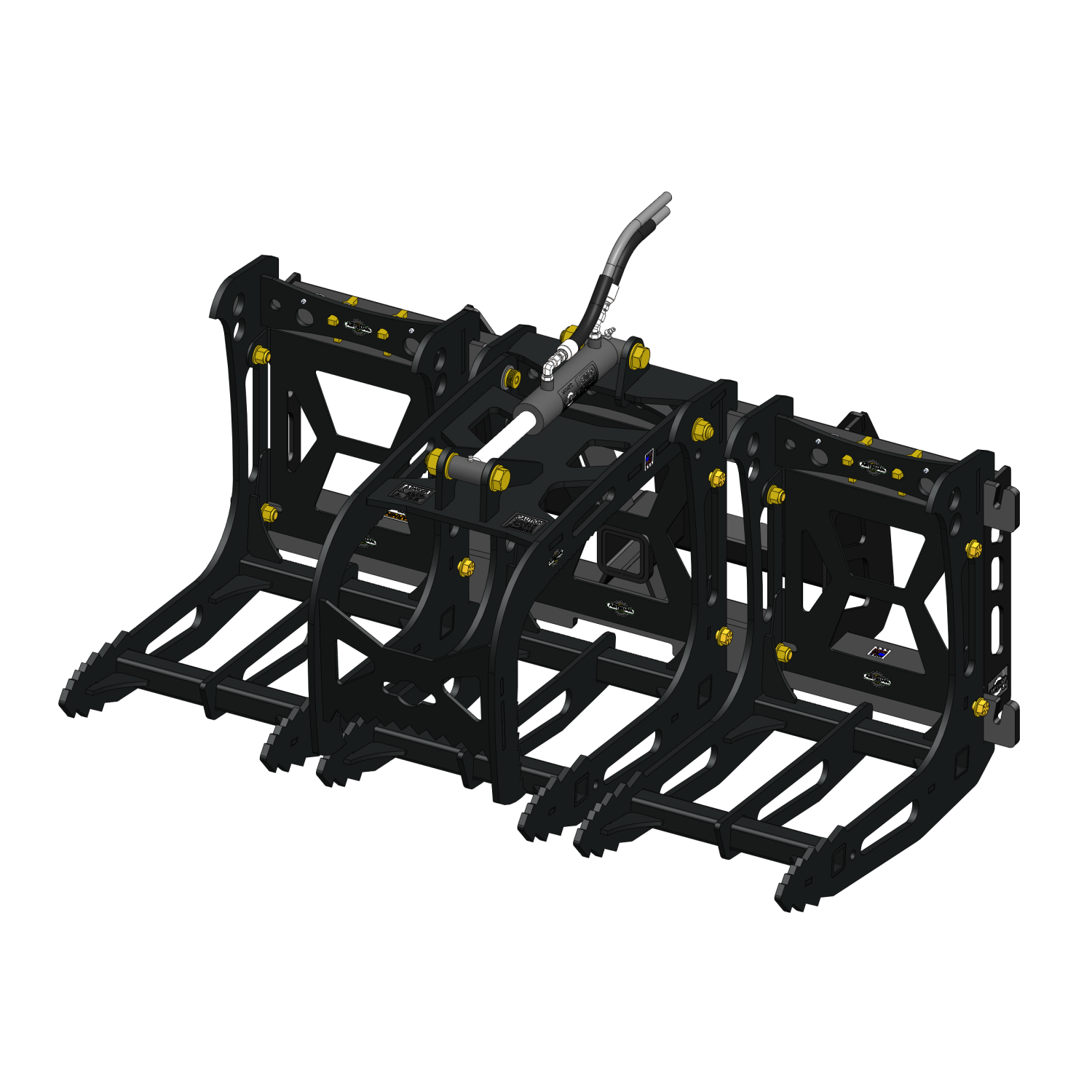

3000 Lb. Mini Skid Steer Quick Attach Frame with 1 Original Sectional Grapple and 2 Rakes

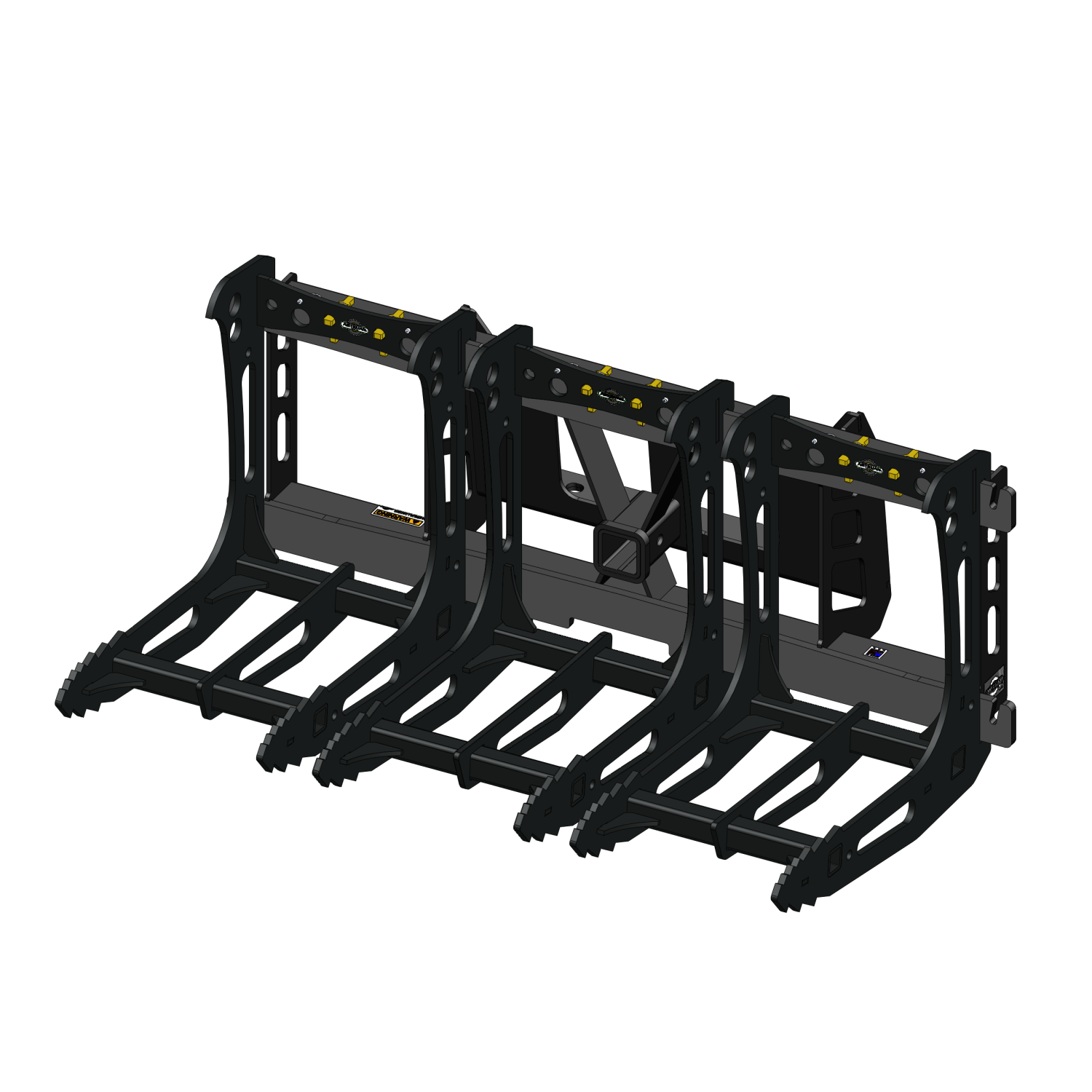

3000 Lb. Mini Skid Steer Quick Attach Frame with 3 Original Sectional Rakes

3000 Lb. Mini Skid Steer Quick Attach Frame with 2 Original Sectional Grapples and 1 Rake

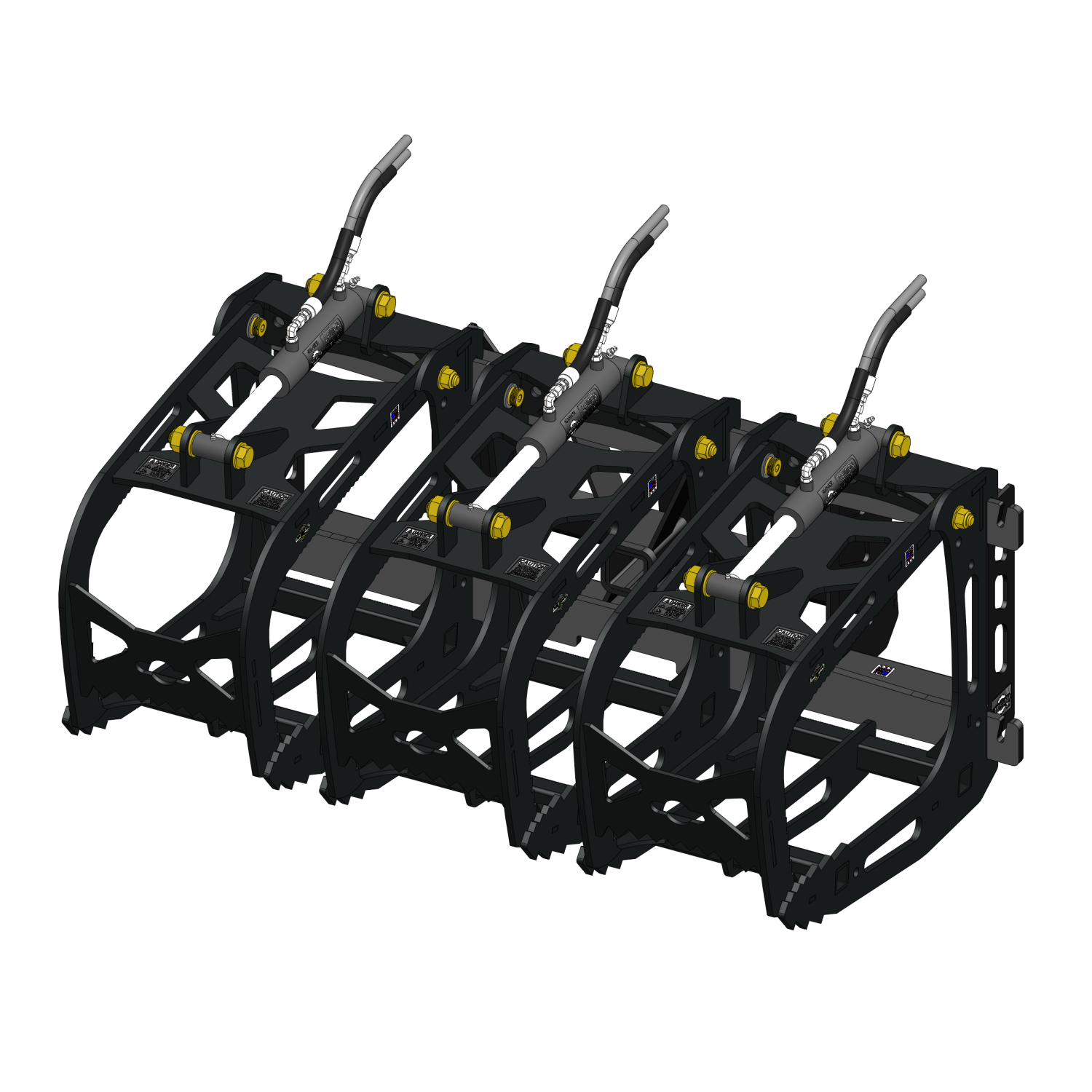

3000 Lb. Mini Skid Steer Quick Attach Frame with 3 Original Sectional Grapples

Original Grapple & Frame for Mini SSQA Front Loaders

Name: Original Grapple &amp; Frame for Mini SSQA Front Loaders
SKU: 318
Availability: InStock

$1,214.00 – $4,515.00

Completely transform the way you do landscaping with a rake and Original Grapple kit that can do it all- digging, hauling, stacking logs, moving rocks, ripping through roots, leveling, demolition, building, the list of versatility goes on. The Original Grapple & Frame for MSSQA Front Loaders includes both the 3000 Lb. Mini Skid Steer Quick Attach frame, and your choice of rake & grapple set-up to suit your needs.

The Original Grapple & Frame for Mini SSQA Front Loaders is a modular system with 8 different rake and grapple configurations available to best suit your purposes. The frame is manufactured with high-strength North American steel and a powder coating, so you can be sure your set up is rugged enough to take on even your toughest jobs, especially with the Original Grapple’s 1020 lb. clamp force.

Frame

Modular quick-attach frames can be used with Artillian pallet forks, grapples, stump buckets, hydraulic plows, & more. Includes built-in 2-inch receiver.

Grapple

The Artillian Sectional Grapple System mounts on the Artillian Pallet Fork Frame. Mix & match sections to best accomplish your tasks. Grapple sections include hydraulic hoses, ready to plug into our hydraulic diverter kits, and go right to work!

When using Artillian Grapples on tractors with greater than 32 HP or with “True 3^rd Function” hydraulics, we recommend adding the Artillian Hydraulic Flow Control Valve to provide the operator with additional control over the opening and closing speed of the grapple.

Using more than one Grapple requires a Hydraulic Splitter Manifold

Made in the USA

Combos

Clear

SKU: N/A Categories: Grapples Rakes & Accessories, Quick Attach Frames & Pallet Forks, Original Grapple, Artillian Frames for Mini Skid Steer Quick Attach

Frame

MIG Welded Construction – Engineered for strength and professionally handcrafted
Quality Materials – Built entirely in the USA with high-strength North American steel
JDQA Hooks – Reinforced with cap plates for extra strength
Durable Protection – Baked-on powder coat is augmented by our proprietary graphite coating on the fork rails for the easiest sliding of attachments
Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads
Trussed Frame – Every pound of excess weight is removed without losing strength
Super High-Strength Upper & Lower Fork Rails – No cheap-formed steel here. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel

Grapple

Unlimited Uses – Designed for brush, roots, rocks, firewood processing, land grading, etc. This system can be used for work above or below grade
Quality Components – We use welded hydraulic cylinders for better durability and longer life over the low-budget tie rod cylinders used by others
Versatile – The rake sections can be used for widening the Grapple bed or by themselves as a ground scouring fire rake and all-purpose rock bucket. Clear away brush, grade the soil, and then scoop up the waste and haul it away
Quick Installation – Permanently attached fast-action hardware secures Grapple and Rake Sections to the Artillian pallet fork frame in seconds
Simple Connections – Grapple Sections include hydraulic hoses with 1/4″ male quick disconnect tips to plug right into our Diverter Kits
Low Maintenance – Our Grapple hinge bushings are made of a custom high-load and high-wear-life material similar to carbon fiber, which requires no lubrication or maintenance
Construction – CAD designed, CNC cut from high-strength North American steel and MIG welding
Finish – Powder-coat black
Choose combinations of Sectional Grapple and Rake Sections
These units attach to Artillian Pallet Fork Frames
Grapple Sections require a 3rd loader function, such as our Diverter Kits
Grapples are rated for use on tractors below 50 HP

Frame

Designed for a maximum load of 3000 lbs. (1360 kg) at 18 inches (46 cm) Load Center. The maximum load may be limited by attachment weights.

Frame Weight: 103 lbs. (46.72 kg)
Built-in 2-inch hitch receiver
Lift capacity: 3000 lbs.
Side load capacity: 2000 lbs.
Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
Tubes: ASTM A513 Steel
Mounting Trusses: ¼” HRPO 1010 Steel
JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
JDQA Pins: Low Carbon Steel
SSQA Plates: ¼” ASTM A572 Grade 50 Steel
MSSQA Plates: ¼” ASTM A572 Grade 50 Steel

Grapple

Powerful – Each Grapple Section can provide up to 1020 lbs. of clamping force at the tips. Using multiple grapples doubles or triples these capabilities. On the high-force hinge setting, three grapples can apply over 3000 lbs. of crushing clamping force at the tips!

High Strength – Both Grapple and Rake Sections are made primarily of 3/8-inch thick ultra-high-strength and wear-resistant steel.

Tines, Spine Plate, & Cylinder Mounts: 3/8” thick AR400 Abrasion Resistant Alloy Steel
Tubes: ASTM A513 Steel
Gussets: ¼” HRPO 1010 Steel

Lightweight – Through extensive engineering, a typical Rake-Grapple-Rake setup weighs about the same as your bucket but is far stronger than competitive products. These Grapples harness over 5000 lbs. of hydraulic cylinder force, but weigh just 90 lbs. Each Rake Section weighs just 40 lbs.

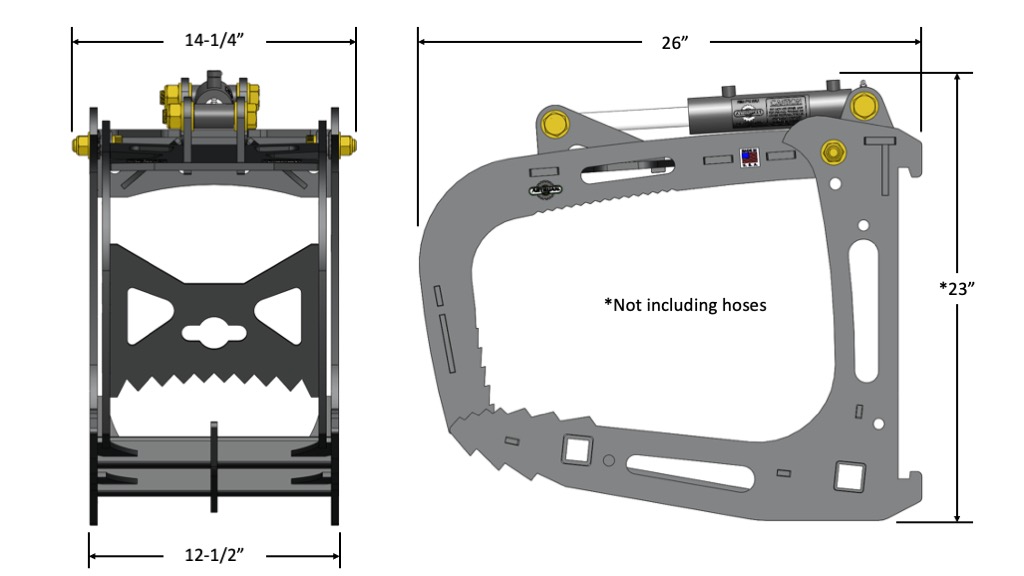

Compact: Grapple is 26” Long X 14-1/4” Wide X 23” High (not including hoses)
