Made in the USA
Rock Bucket Grapple
$999.00

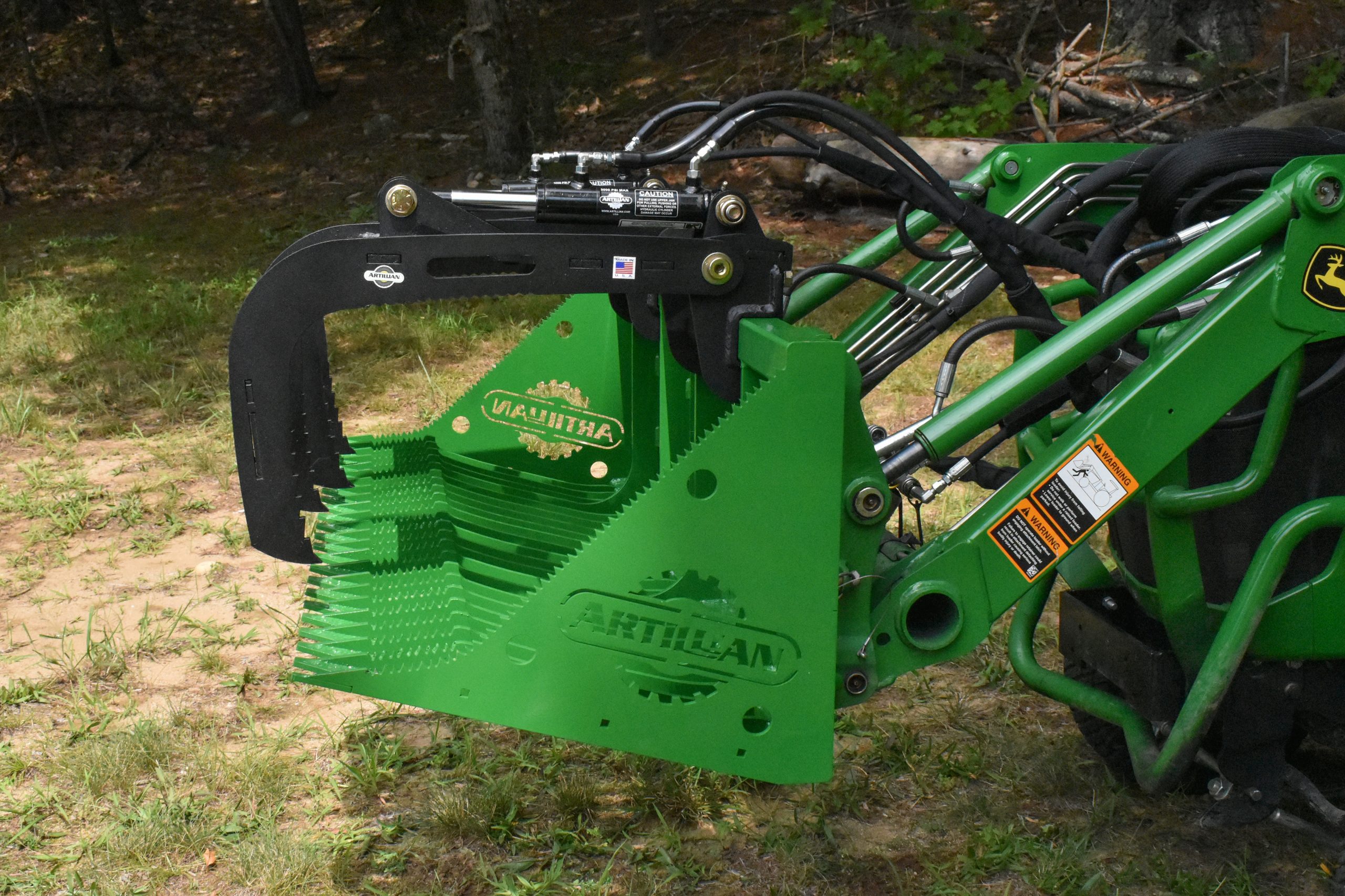

Introduce a great deal of versatility to the Artillian Rock Bucket with an Add-on grapple, providing the opportunity for pulling large stones, moving debris, and increased control over sifting. High-strength steel and a black powder coating ensure your machinery is built to last.Save when you bundle the Artillian Rock Bucket Grapple with an Artillian Rock Bucket
$100 off 1 Grapple with a Rock Bucket | $400 off 2 Grapples with a Rock Bucket.
Must buy Rock Bucket and 1-2 Grapples for discount.

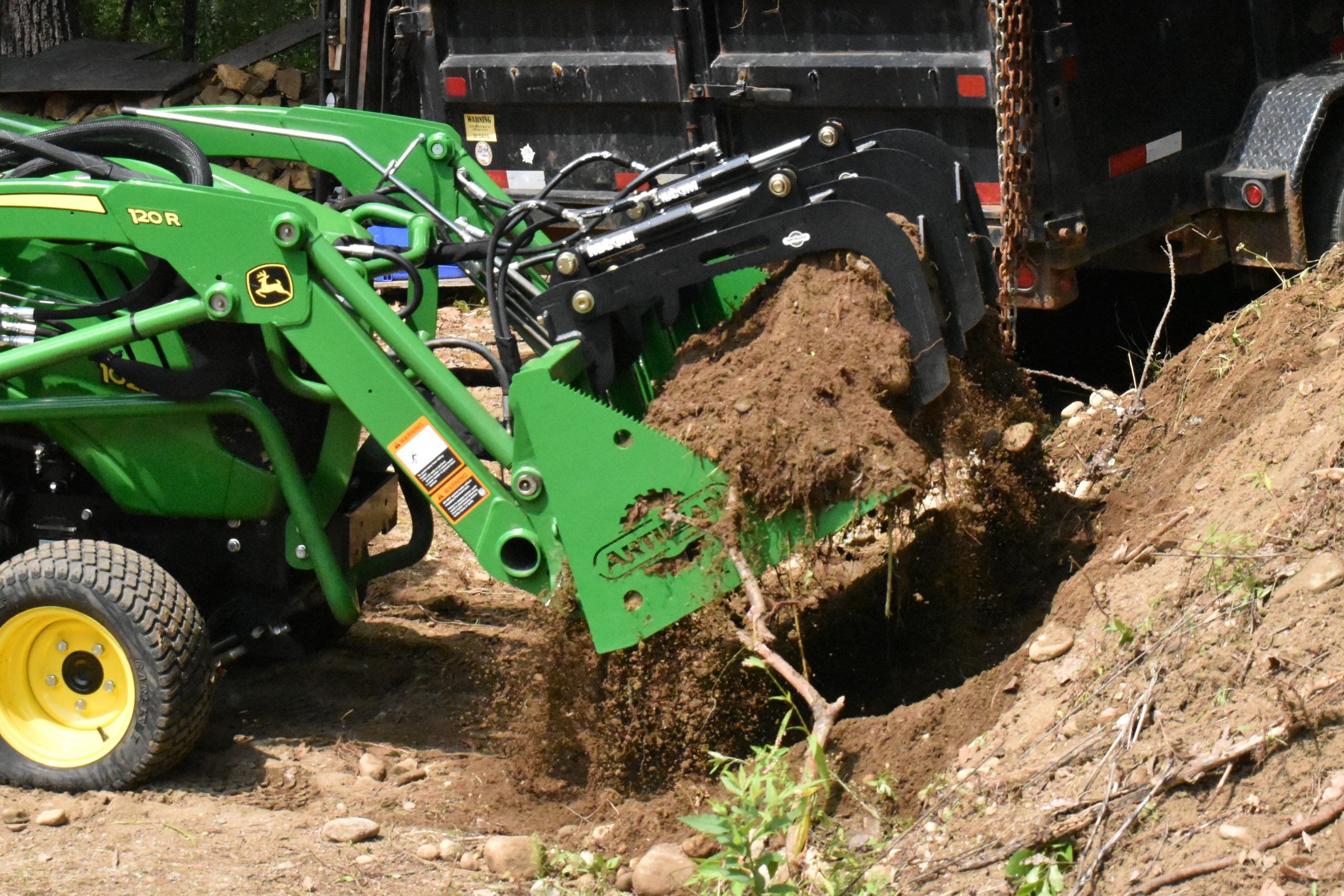

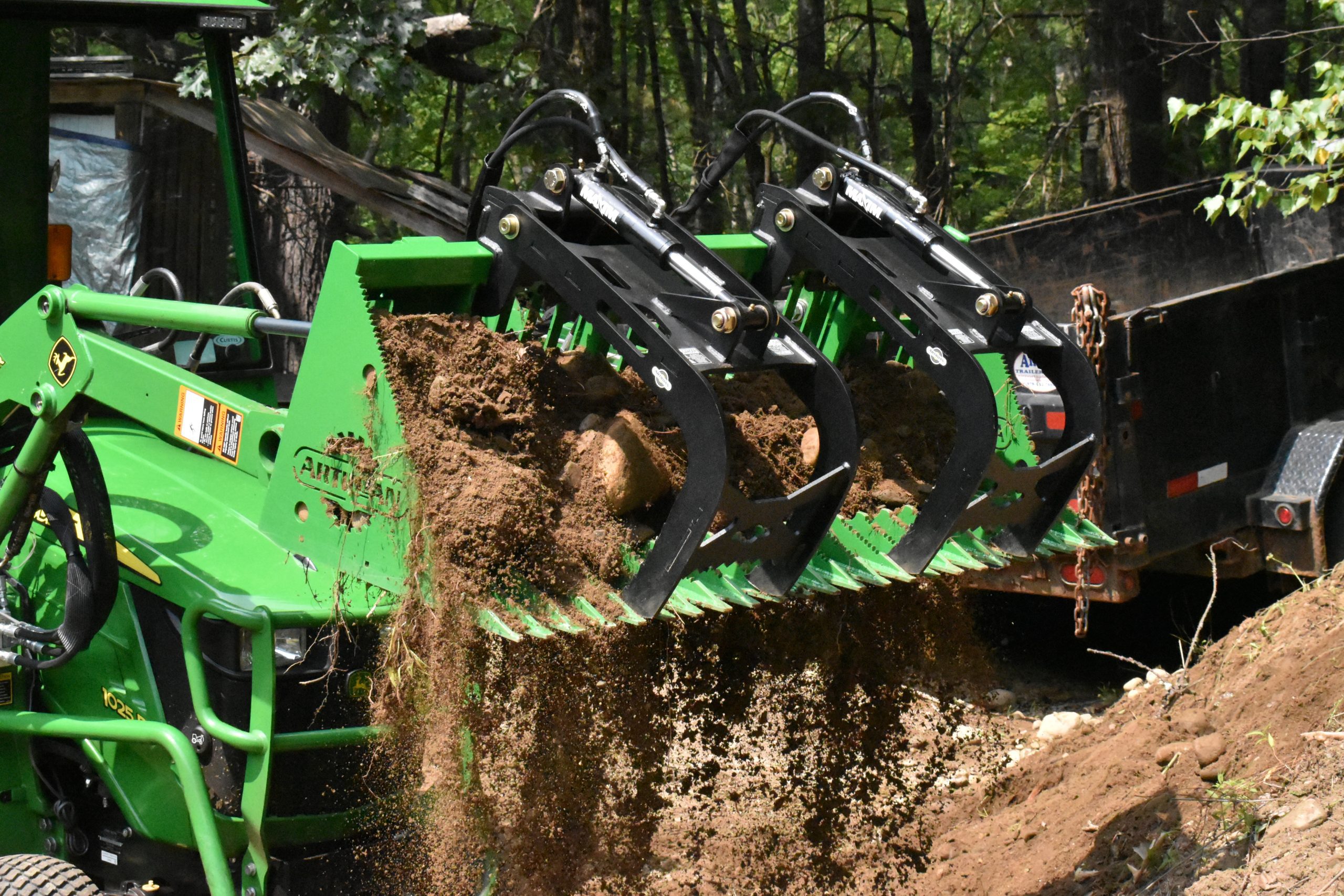

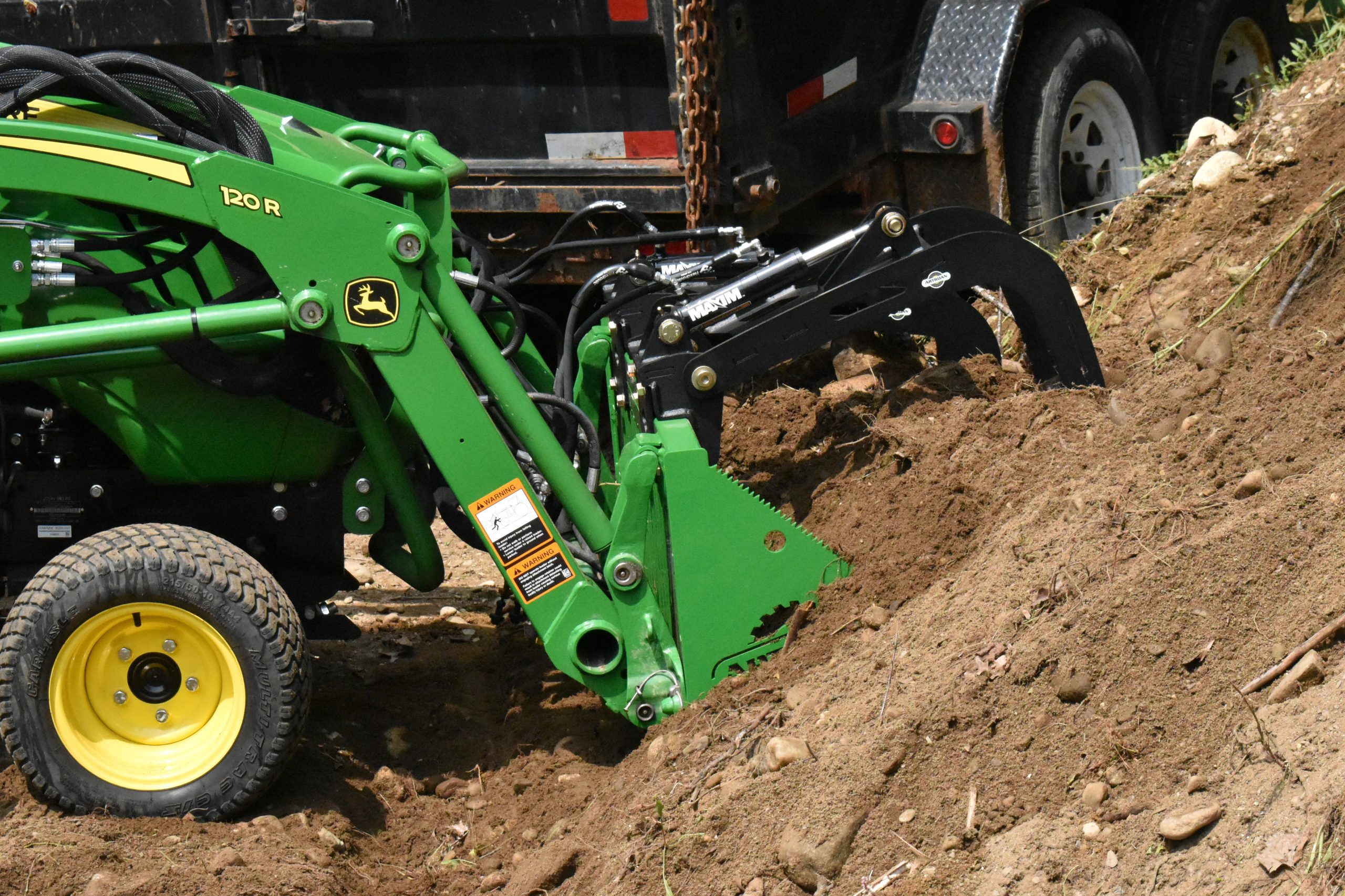

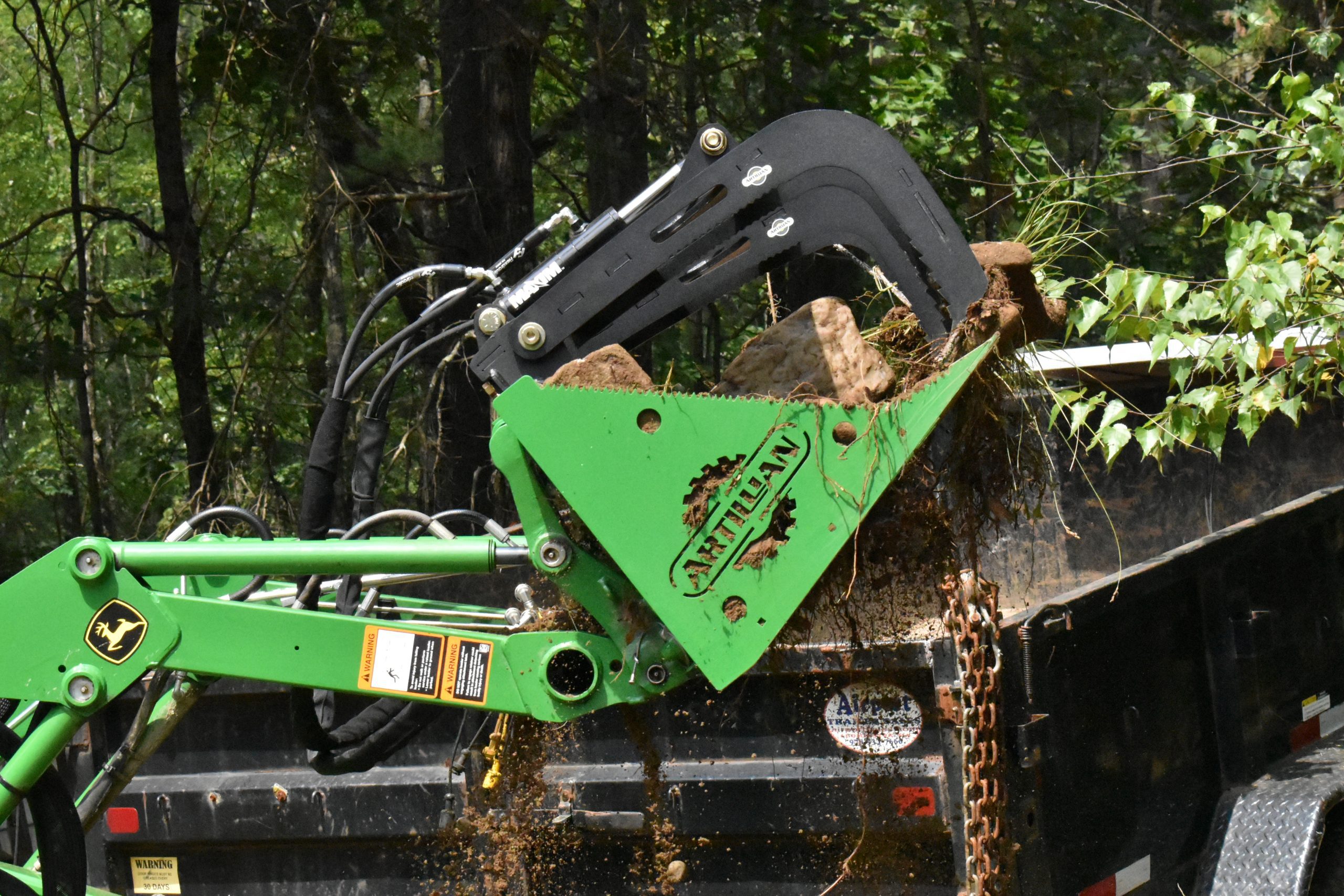

The Artillian Rock Bucket Grapple is a must-have accessory for the Artillian Rock Bucket. Provides clamping force for pulling large stones out of the ground, while preventing them from rolling out of the bucket. Adds versatility to the rock bucket, allowing it to be used as a grapple for moving debris, sticks, logs, etc.
*Not compatible with non-Artillian Rock Buckets or with OEM materials buckets.
Using more than one Grapple requires a Hydraulic Splitter Manifold

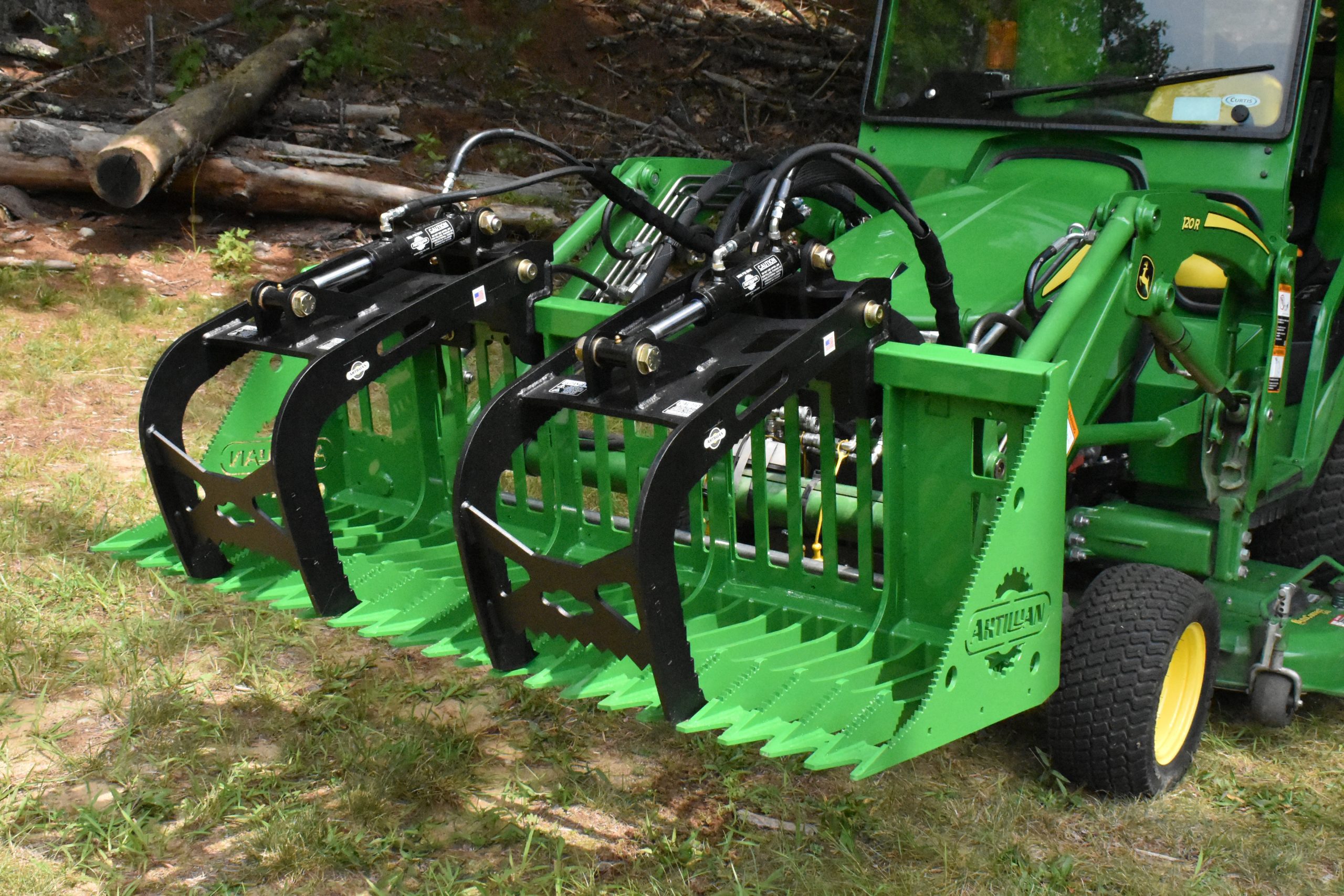

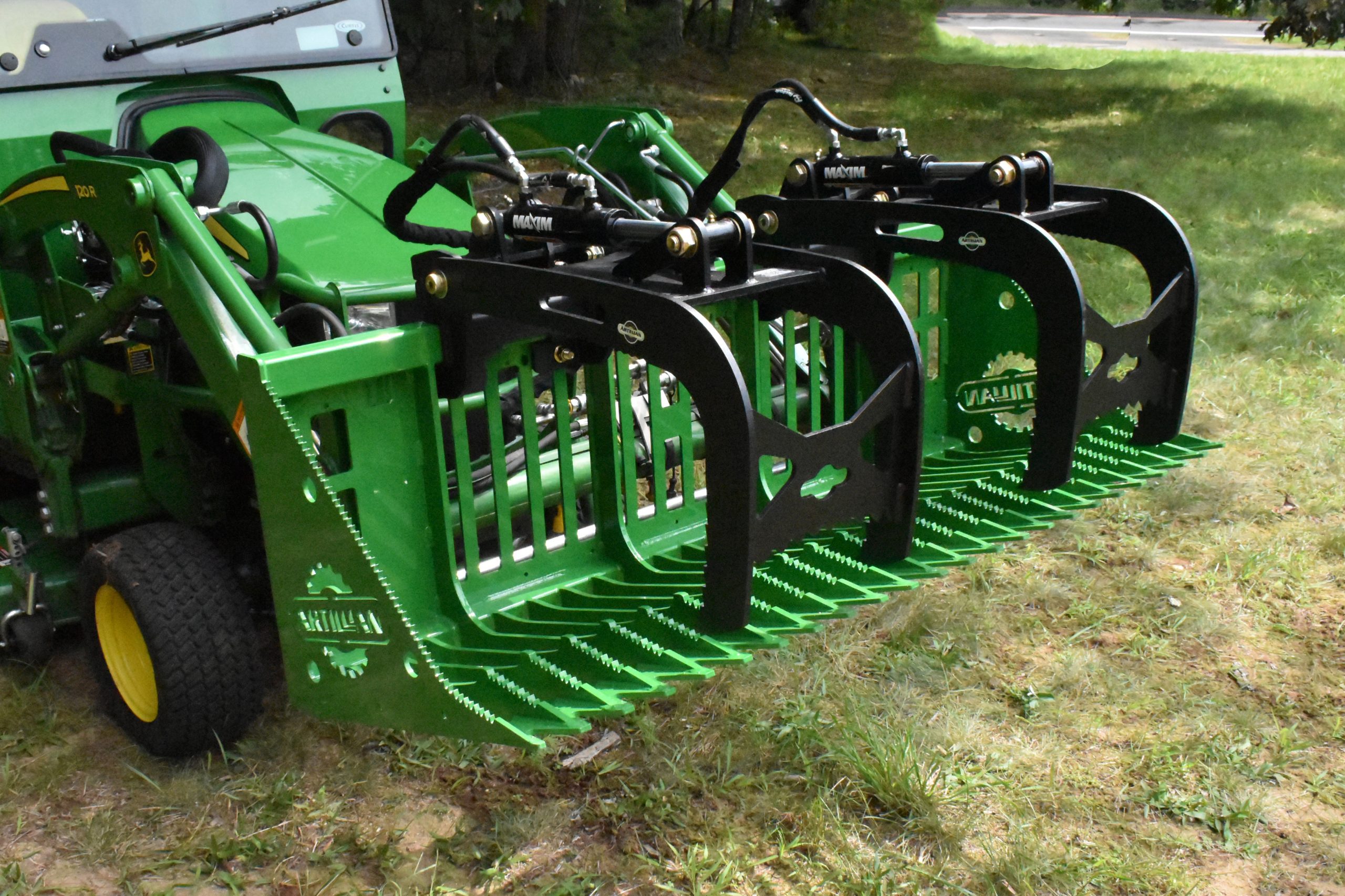

Each grapple attachment weighs ~70 Lbs., minimizing the reduction of lift capacity. Add up to two grapple lids in minutes with the simple, yet elegant clamping method of attaching to the rock bucket.
- Unlimited Uses– Designed for brush, roots, rocks, firewood processing, land grading, etc. This system can be used for work above or below grade

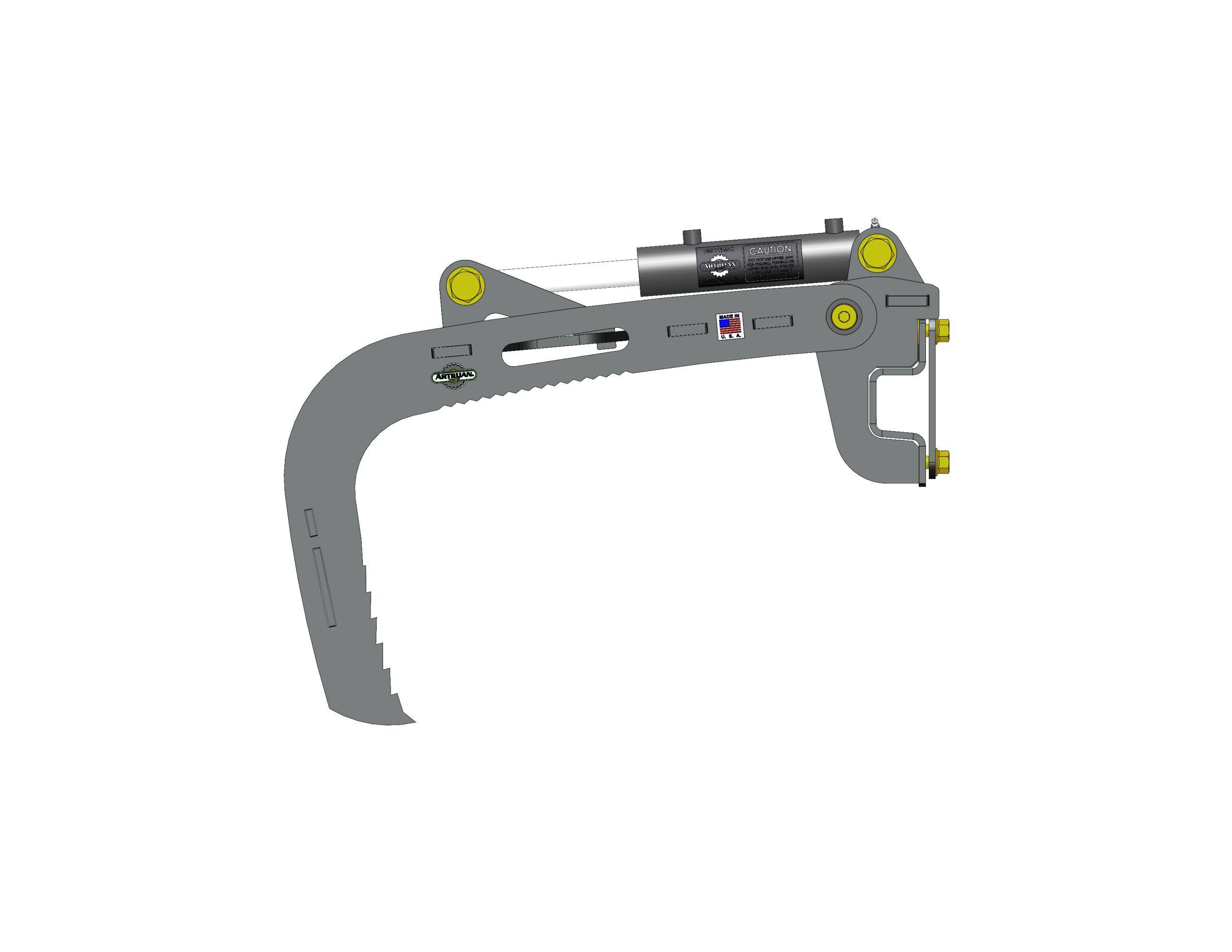

- Quality Components– We use welded hydraulic cylinders for better durability and longer life over the low-budget tie rod cylinders used by others

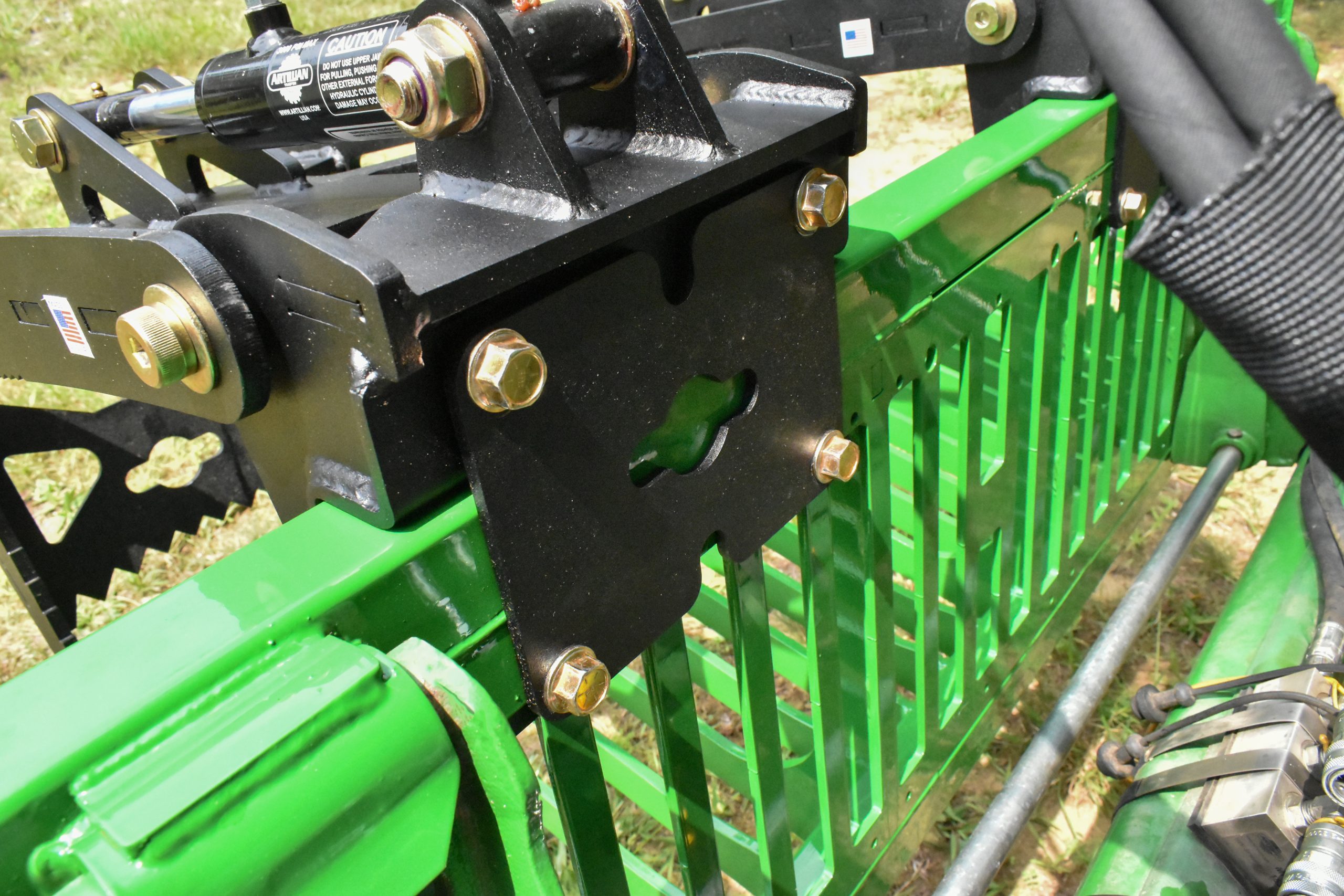

- Quick Installation– Permanently attaches to the Artillian Rock Bucket in minutes with (4) fasteners.

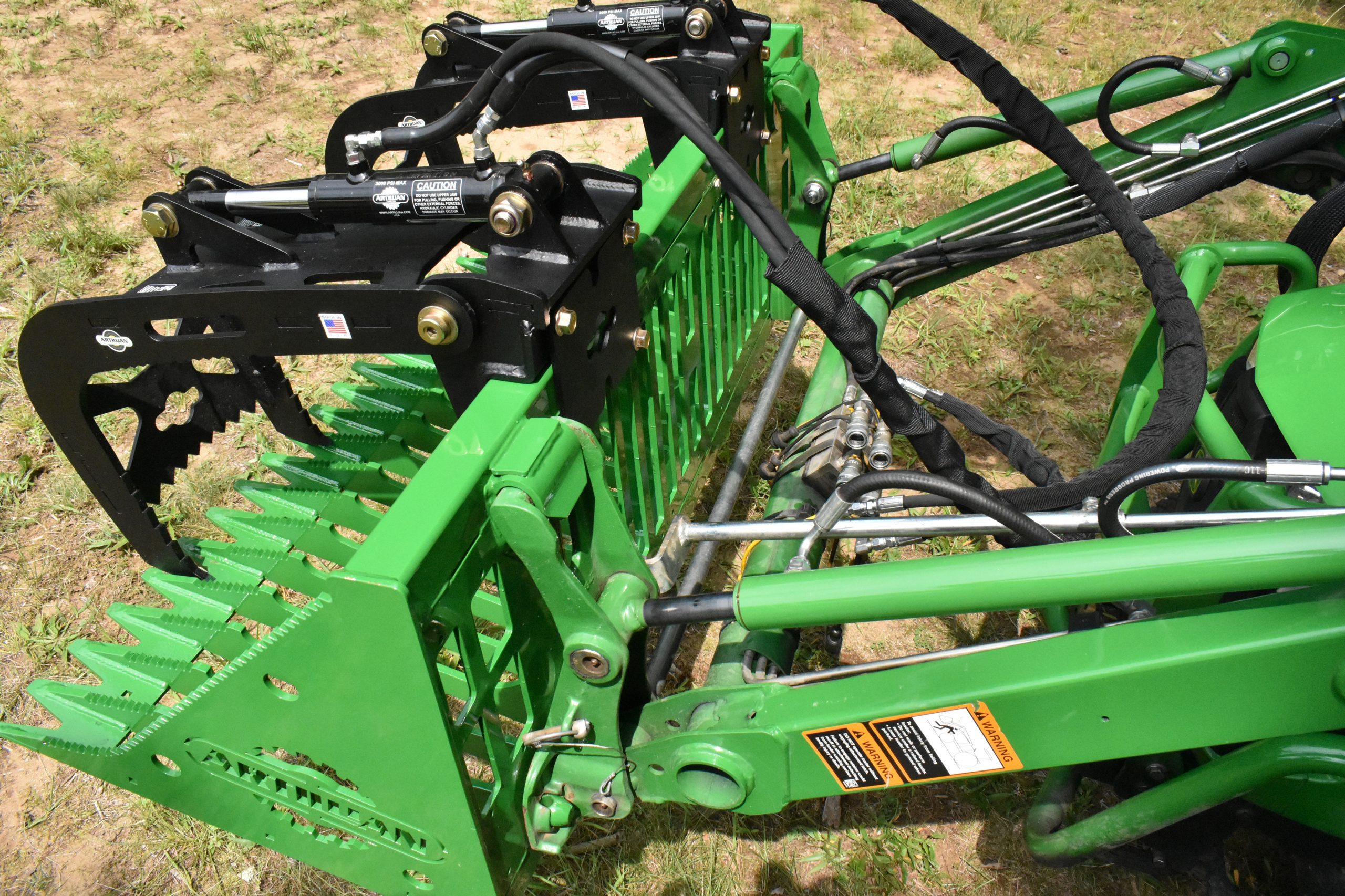

- Simple Connections– Grapple Sections include hydraulic hoses with 1/4″ male quick disconnect tips to plug right into our Diverter Kits

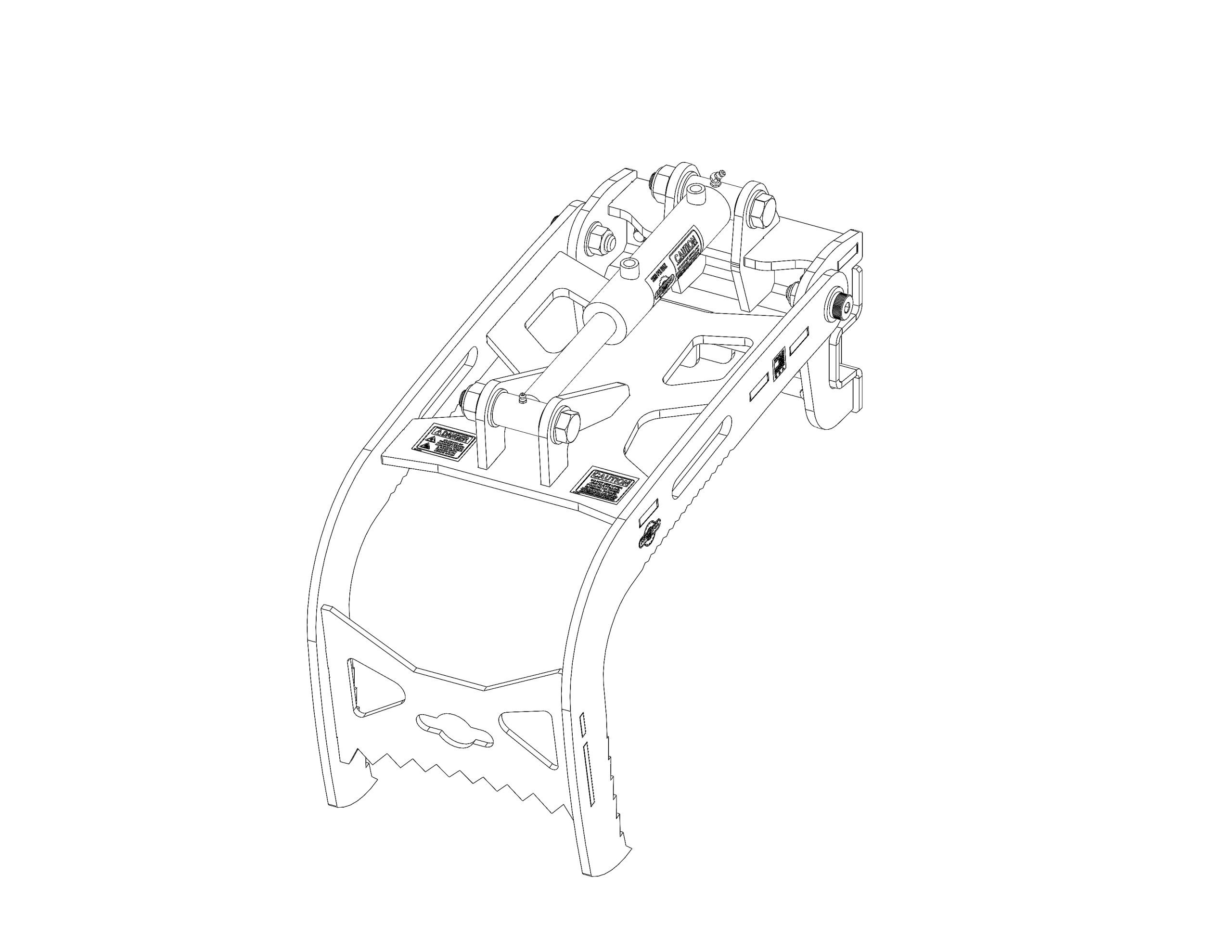

- Low Maintenance– Our Grapple hinge bushings are made of a custom high-load and high-wear-life material similar to carbon fiber, which requires no lubrication or maintenance
- Construction– CAD designed, CNC cut from high-strength North American steel and MIG welded
- Finish– Powder-coat black
- Powerful – Each Grapple Section can provide up to 700 lbs. of clamping force at the tips. Using multiple grapples doubles these capabilities.
- High Strength – Grapple Sections are made primarily of 3/8-inch thick ultra-high-strength and wear-resistant steel.
- Lightweight – Building off the Original Artillian Grapple, each lid adds only 70 Lbs. to the weight of the Rock Bucket.
- Grapple Performance:
- Grapples are rated for use on tractors below 40 HP
- Grapple closing/opening time: 0.5-1 second
- Clamping force at the tips:
Clamping force varies through the range of clamp rotation and also depends on your tractor’s hydraulic pressure.
| TRACTOR HYDRAULIC PRESSURE, PSI | TIP FORCE (MAX), LBS. |
| 3000 | 700 |
| 2800 | 650 |
| 2500 | 570 |
| 2200 | 500 |
